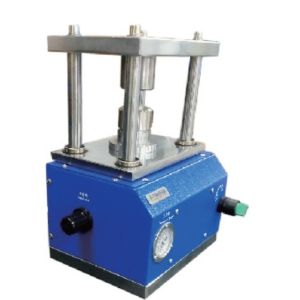

Laboratory Pneumatic Coin Cell Crimper Sealing Machine

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : GERUISI

Payment Terms : T/T, Western Union

Sealing Type : Coin cell

Applicable Industries : Battery

Application : Coin Cell Production

Crimping pressure : Manual regulating valve control, maximum pressure 1MPa, recommended pressure 0.7MPa, accuracy within ± 0.5%

Coin cell type : CR16, CR20, CR24, and CR30 can be selected or added

Contact Now

Product Description
The pneumatic button/coin cell packaging experimental equipment is mainly used for sample production of battery material research and development in the laboratory to conduct button cell and capacitor scientific research sealing, and also can be used for small batch trial production in the factory. It uses electric mode to save labor. Different molds can also be configured for battery disassembly, pole slice pressing, battery powder pressing and other operations.
Features:
1.Pure pneumatic operation, no need for electricity, easy to use;
2.Compressed air or inert gas cylinders can be used for gas supply, and the compressed air exhaust can be connected externally to prevent damaging the atmosphere of the glove box;
3.Precision mold design ensures accurate and reliable sealing and molding, solid steel structure design, stable and safe use;
4.The inner ring of the sealing cup of the upper mold is equipped with a screw spring centering mechanism to ensure that if the battery is stuck and cannot be taken out when sealing, just twist the top screw to force the button cell out;
5.The lower mold uses a high-precision positioning ring to limit the height of the battery packaging, to avoid damage to the
battery and sealing cup in case of excessive and unstable packaging pressure
Specification
Air source
0.6～0.8MPa argon and nitrogen gas cylinders, or compressed air (it is not recommended to use compressed air in the glove box)
Exhaust design
Specially designed exhaust port, which can be externally connected through devices such as KF40
Gas consumption
Single sealing consumes about 480ml of gas
Coin cell Crimping Sealing pressure
Manual regulating valve control, maximum pressure 1MPa, recommended pressure 0.7MPa, accuracy within ± 0.5%
Sealing stroke
30mm
Sealing Crimping coin cell mold
Standard configuration of CR20 series packaging molds, optional or additional specifications
Shelling mold
Various specifications such as CR16, CR20, CR24, and CR30 can be selected or added
Installation dimensions
L290mm*W205mm*H330mm
Weight
25Kg
Other functions
With the function of preventing short circuit of battery seal
Structure material
High strength chrome steel, with environmentally friendly plating and spraying treatment on the surface, never rusting
Laboratory Pneumatic Coin Cell Crimper Sealing Machine
